Christmas Tree Spiral Fan

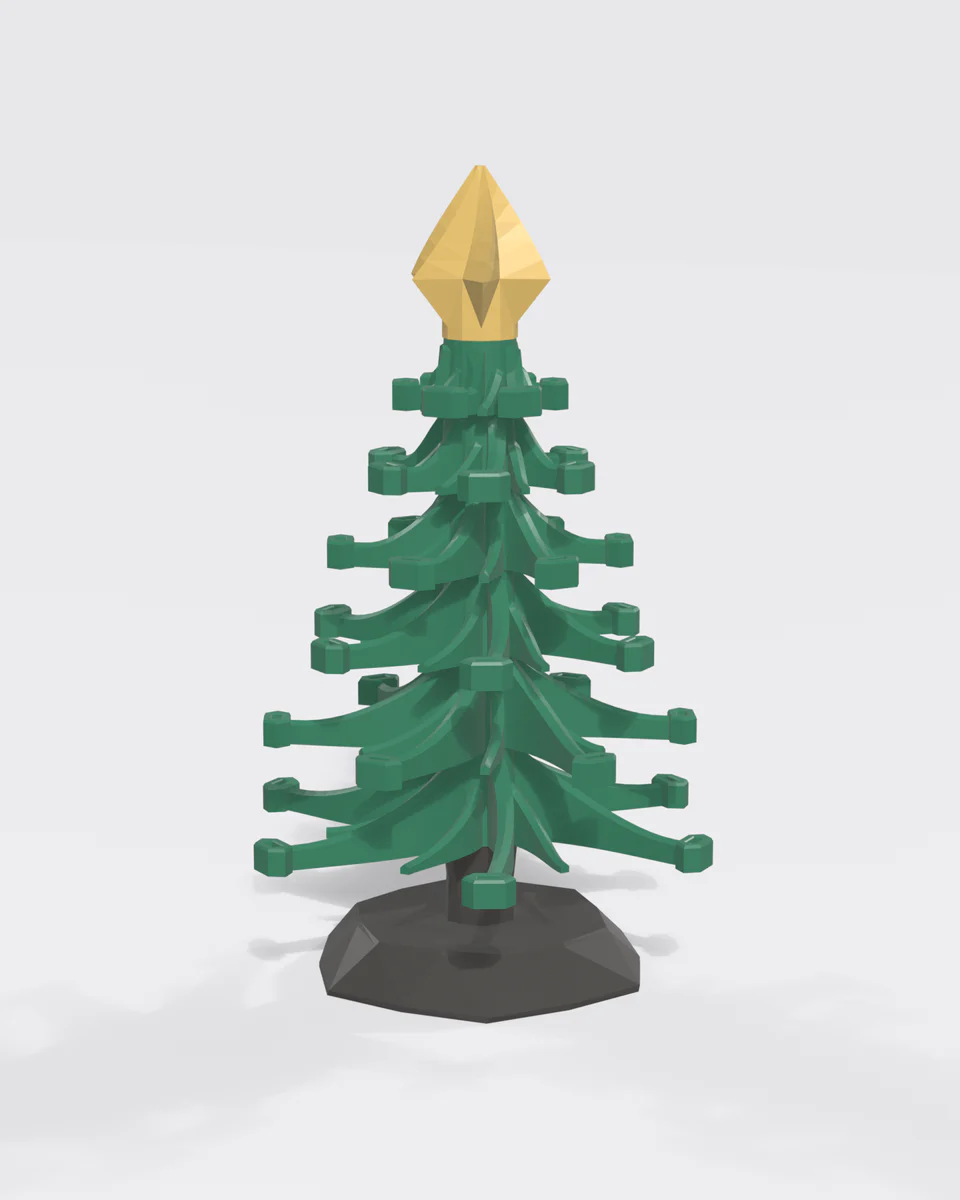

A modern tabletop tree made of six curved tiers with a crystal top and 36 spots for little ornaments.

Freebies can only be downloaded with a free customer account.

License: License incl. right to sell prints: Print, gift and sell your printed pieces. The files themselves stay with you.

About this model

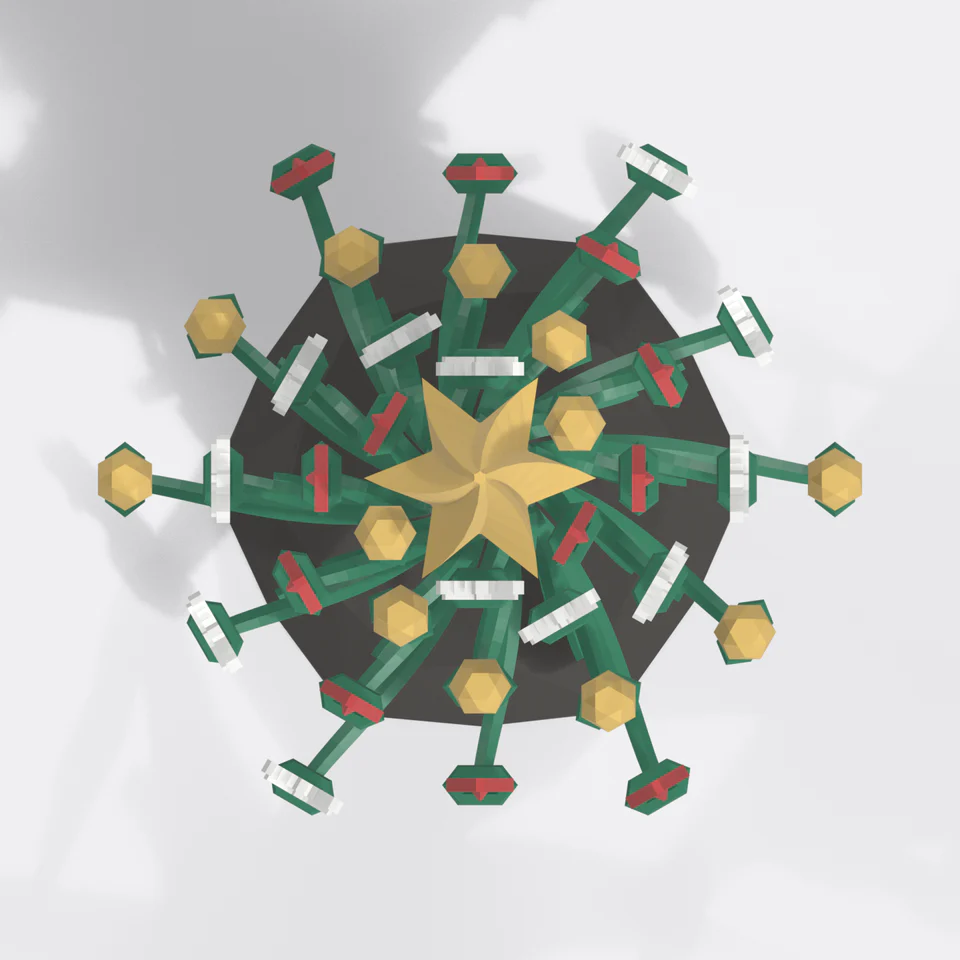

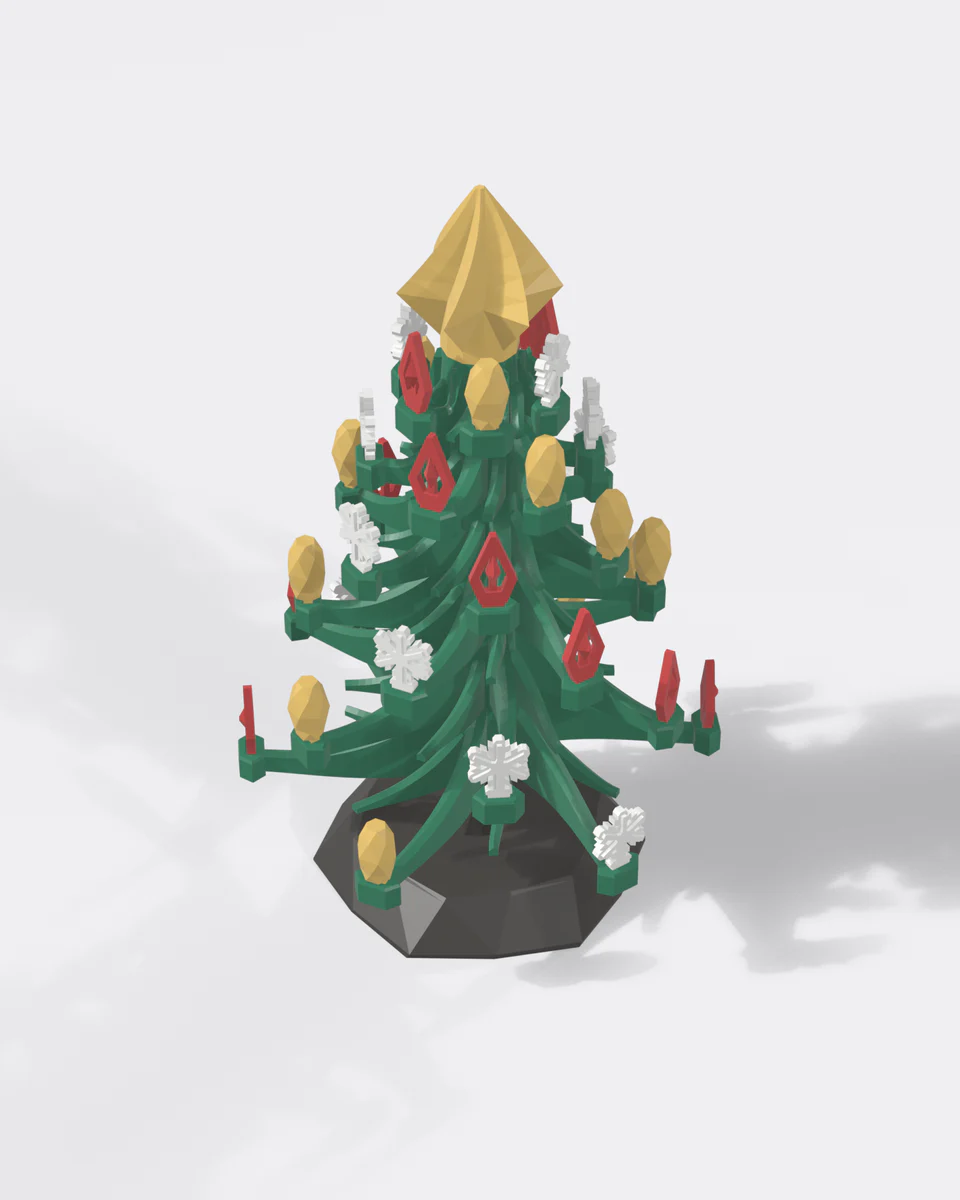

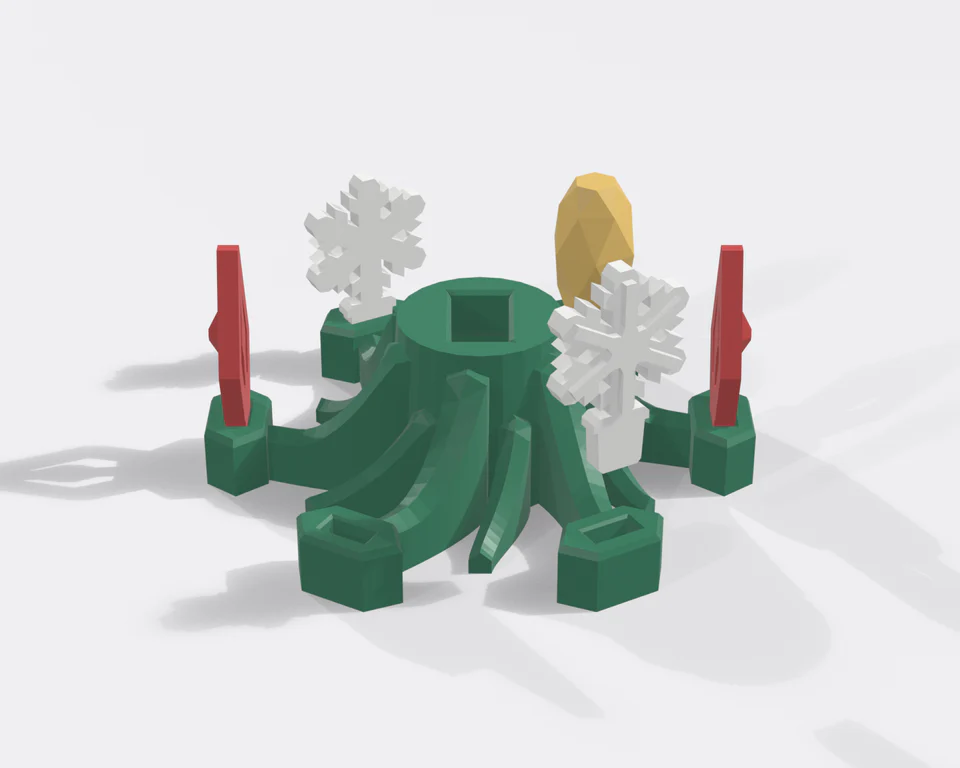

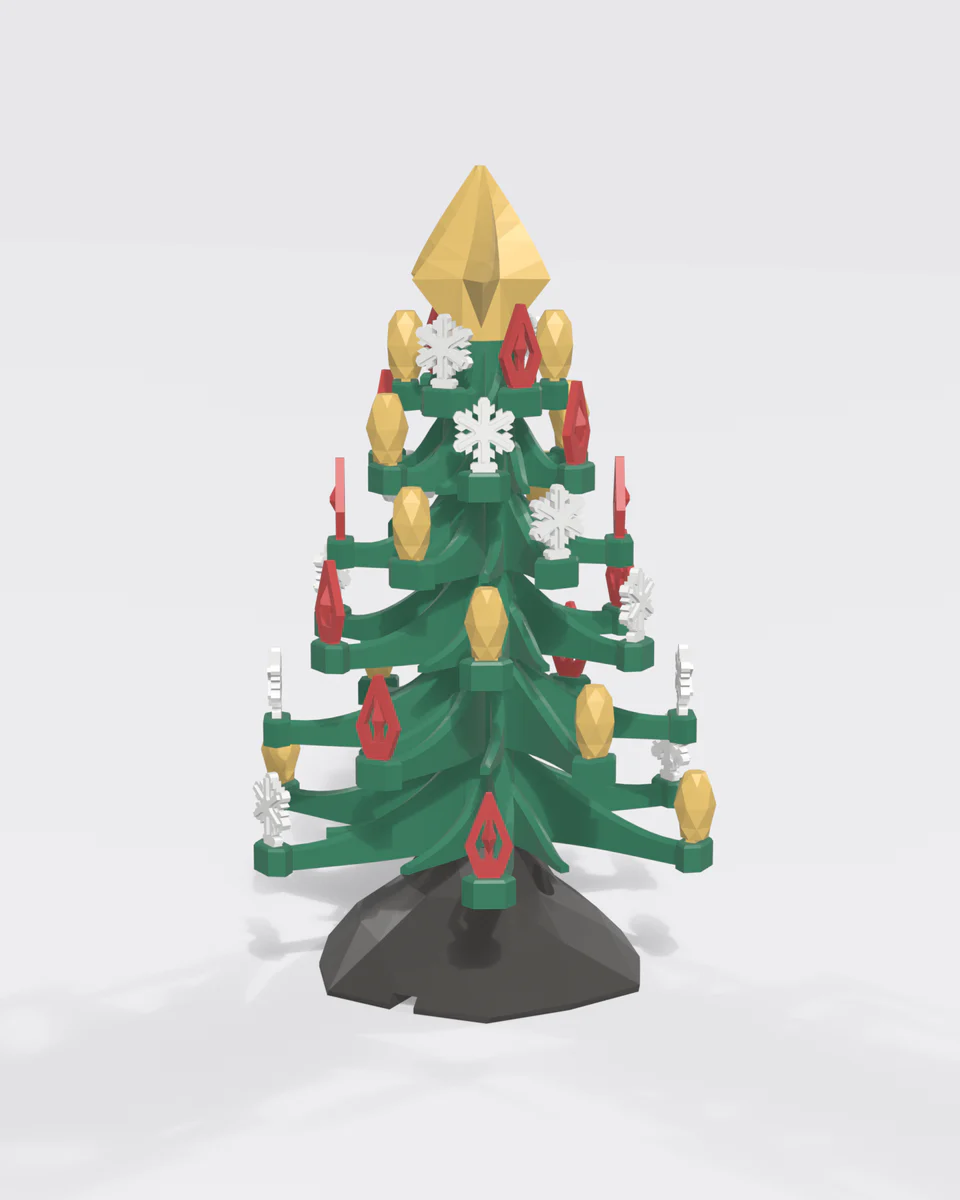

Six tiers of curved blades spiral on top of each other, so the tree looks full and lively from every side. You can plug crystals, snow stars and diamonds into the branch tips and redecorate whenever you like.

About 27 cm tall

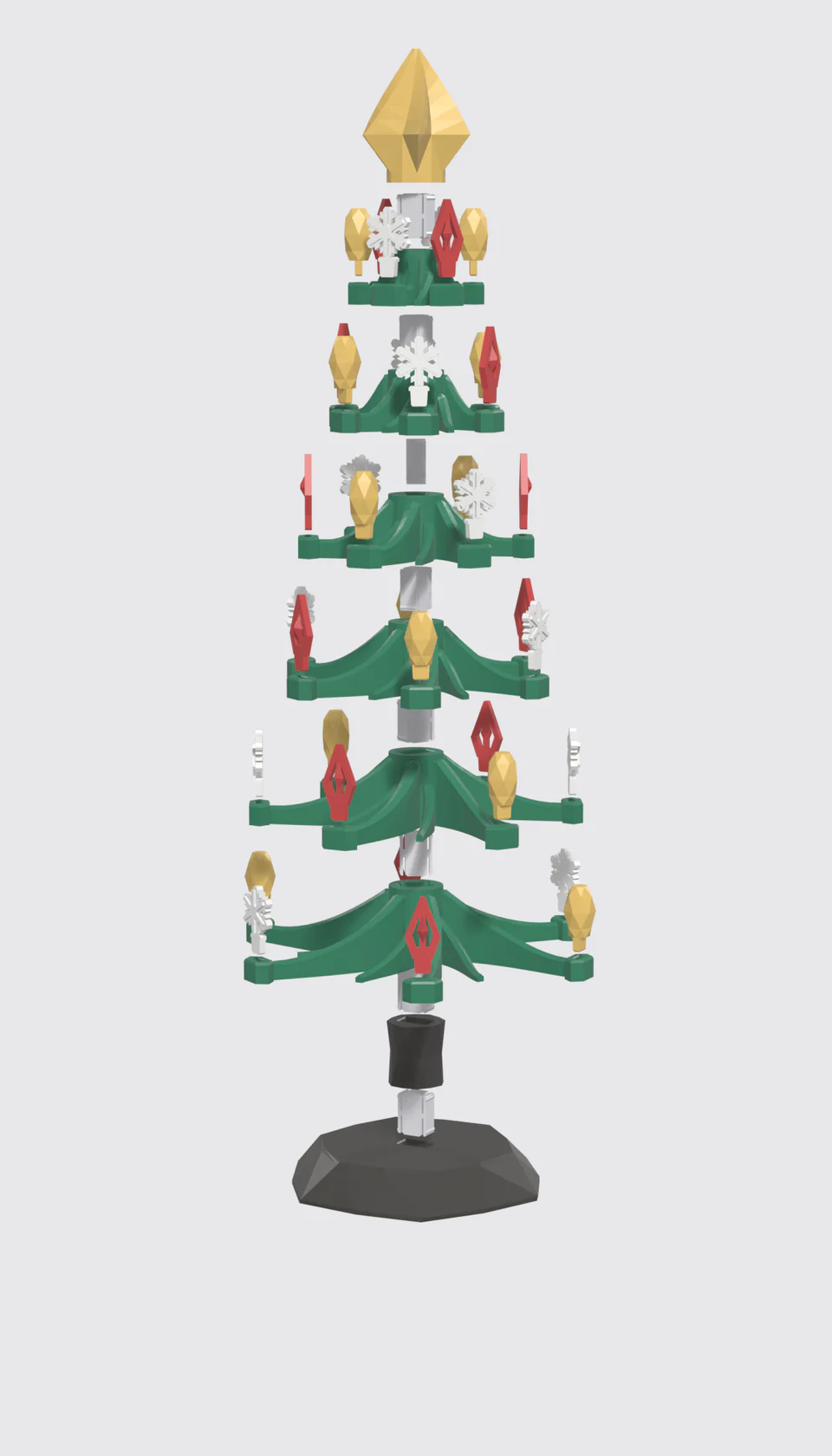

Everything just plugs together, no glue or tools needed
Three ornament shapes included, plus a light base as a variant

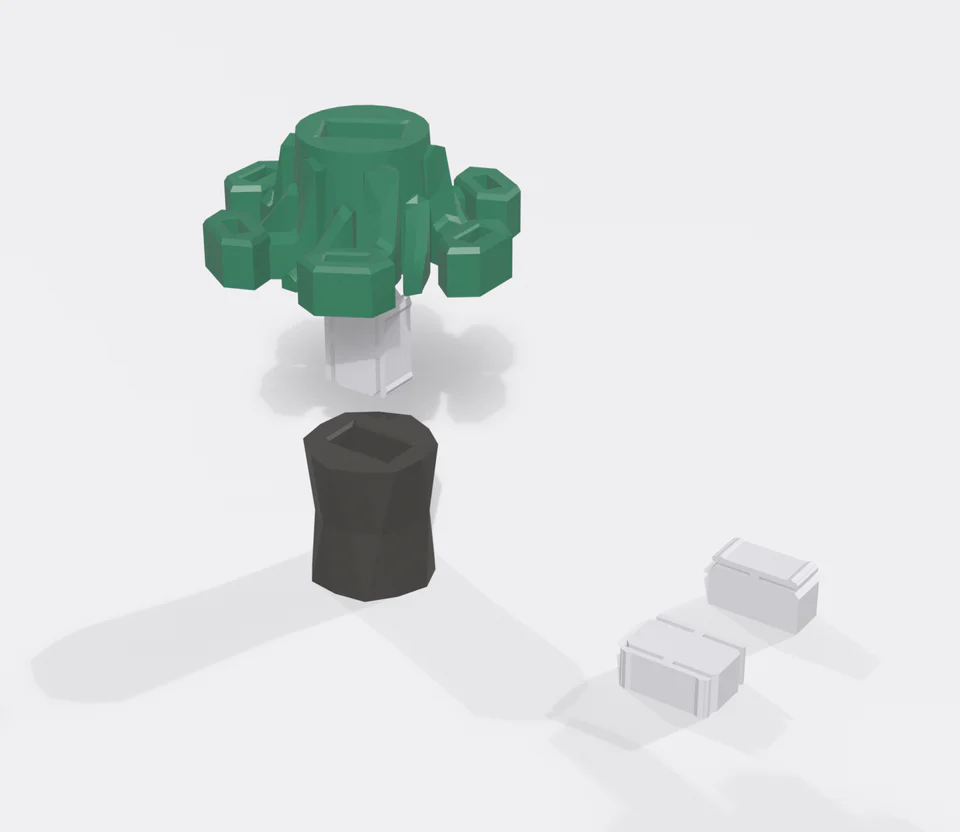

With a small fit test so everything holds nicely

You will find all printing details under “Print info & files”.

Print info & files

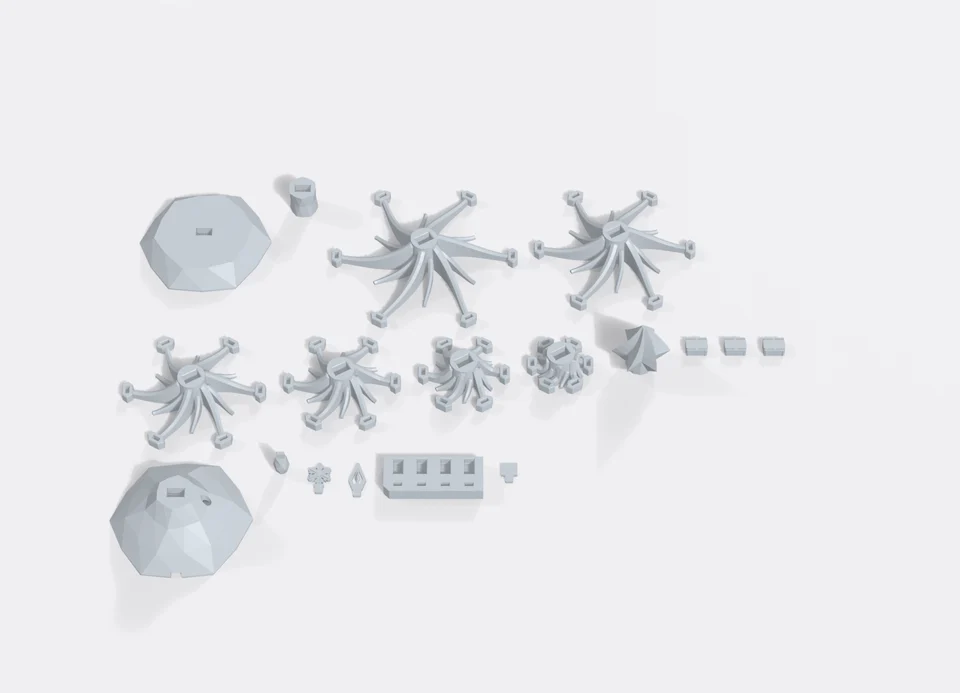

Included files

Weihnachtsbaum_Spiralfaecher_v0.1.zipZIP · 1.1 MB
01_Fuss_Standard.stlSTL · 32.7 KB
02_Stamm.stlSTL · 18.6 KB
03_Ebene_1.stlSTL · 167.4 KB
04_Ebene_2.stlSTL · 167.4 KB
05_Ebene_3.stlSTL · 168.5 KB

Show all 27 files

06_Ebene_4.stlSTL · 166.8 KB
07_Ebene_5.stlSTL · 168 KB
08_Ebene_6.stlSTL · 169.1 KB
09_Spitze_Sternkristall.stlSTL · 18.1 KB
10_Verbinder_F_fest.stlSTL · 7.7 KB
10_Verbinder_L_leicht.stlSTL · 7.7 KB
10_Verbinder_N_normal.stlSTL · 7.7 KB
11_Leuchtsockel_LED.stlSTL · 49.1 KB
Ornament_A_Kristall.stlSTL · 4.6 KB
Ornament_B_Schneestern.stlSTL · 36.8 KB
Ornament_C_Raute.stlSTL · 11.8 KB
Test_Passungsblock.stlSTL · 34.3 KB
Test_Stecklasche.stlSTL · 2.7 KB
Test_Verbinder_N_normal.stlSTL · 7.7 KB
Platte_0_Passungstest.3mf3MF · 45.3 KB
Platte_1_Fuss_Stamm_Spitze_Verbinder.3mf3MF · 76.4 KB
Platte_2_Ebene_1_und_6.3mf3MF · 148.6 KB
Platte_3_Ebene_2_und_5.3mf3MF · 146.8 KB
Platte_4_Ebene_3_und_4.3mf3MF · 151.2 KB
Platte_5_Ornamente_36.3mf3MF · 221.5 KB
Platte_6_Leuchtsockel_LED_optional.3mf3MF · 46.5 KB

Version 1.0 · 13 Oct 2026

Print info

Recommended material: PLA oder PLA+
Layer height: 0,2 mm
Supports needed: No
Print time: ca. 9 Std. (Slicer Schätzung, ganzer Baum mit 36 Ornamenten)
Bed size: 180 x 180 mm (Teile einzeln, nicht im Slicer getestet), 256 x 256 mm für die fertigen Platten
Print orientation: Alle Teile wie geliefert, Verbinder flach liegend

Print all parts as supplied and keep supports switched off, otherwise the slicer fills the sockets. PLA or PLA+, 0.4 mm nozzle, 0.2 mm layer height, 15 % infill. The whole tree with 36 ornaments takes about 9 h. Print the fit test first (about 40 min) and choose the matching connector. Use LED light only for the light base, a fairy light is not included. Not test printed yet.
